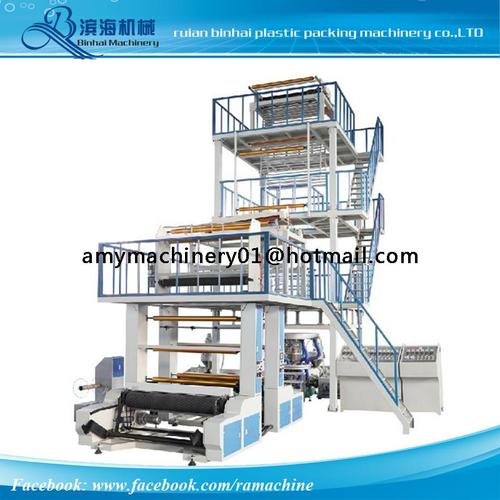

ABC  Three-layer Con-extruding Film Blowing Machine

FEATURE

MODEL

SJ-3L-50B

SJ-3L-55B

SJ-3L-65B

Suitable material

HDPE/LDPE/LLDPE/EVA

Layer number

ABC Three layer

Film thickness

0.028-0.2mm

Max output

220 KG/H

290 kgs/h

380 kgs/h

Max film width

800-1500 MM

1200-2000MM

1600-2500MM

EXTRUDER

Screw diameter

Ø50MM+55+50

Ø55+65+55MM

Ø65mm+70+65

Screw L/D

28:1

Screw material

38CrMoALA+PTA ALLOY

Barrel material

38CrMoALA+PTA ALLOY

Barrel cooling

370W×2/3

370Wx2/3

550Wx3/3

Driving motor

18.5kw+22+18.5

22kw+37+22

37kw+45+37

Die diameter

Ø250/300

Ø400/

Ø500

Heating zone

3*3

3*3

4*3

Air blower

7.5 KW

11KW

15KW

TAKE UP UNIT

Take up type

UP and DOWN

Up roller width

1600MM

2100MM

2600MM

Up motor

Take up speed

5-60m/min

5-45m/min

5-45m/min

WINDER

Winder type

Single Friction Winder

Winding motor

Max winding diameter

DIMENSIONS

L×W×H

9.5*4.5*7.5m

10.5*5*9m

11.5*5.5*10m

OPTIONAL DEVICE

AUTO LOADER,CORONA TREATER,

ROTARY DIE HEAD,AUTO WINDER,ETC
