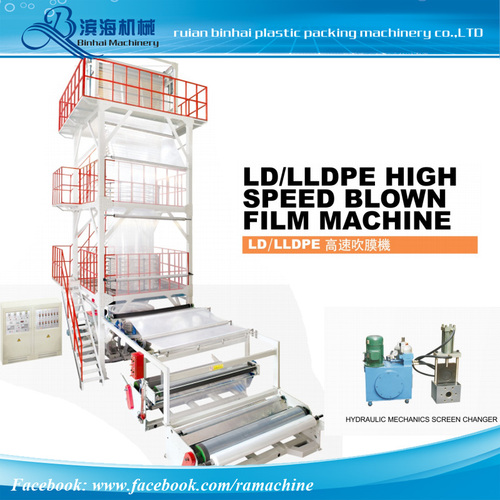

SJ-L-80B/90B/100B/120B Film Blowing Machine
FEATURE | MODEL | SJ-L-80B | SJ-L-90B | SJ-L-100B | SJ-L-120B |
Suitable material | LDPE/LLDPE |
Layer number | One Layer |
Film thickness | 0.015-0.15mm |
Max output | 150 KG/H | 280 kgs/h | 350 kgs/h | 450kgs/h |
Max film width | 800-1500 MM | 1200-2000MM | 1600-2500MM |
|
EXTRUDER | Screw diameter | Ø80 | Ø90 | Ø100 | Ø120 |
Screw L/D | 28:1 |
|
Screw material | 38CrMoALA+PTA ALLOY |
|
Barrel material | 38CrMoALA+PTA ALLOY |
|
Barrel cooling | 550W×3 | 550Wx3 | 750wx4 | 750w x4 |
Driving motor | 37kw | 55kw | 90kw | 110kw |
|
|
|
|
|
Die diameter | Ø350 /400 | Ø400/500 | Ø500/600 | Ø700/800 |
Heating zone | 3 | 4 | 4 | 5 |
Air blower | 5.5 KW | 7.5KW | 11KW | 15kw |
TAKE UP UNIT | Take up type | UP and DOWN |
|
Up roller width | 1600MM | 2100MM | 2600MM | 3200mm |
Up motor |
|
|
Take up speed | 50-60m/min | 50-60m/min | 50-60m/min | 50-40m/min |
WINDER |
|
|
|
|
|
Winder type | Single Friction Winder |
|
Winding motor |
|
|
|
|
Max winding diameter |
|
|
DIMENSIONS | L×W×H | 6.8*2.6*7m | 7.5*3.2*7.5m | 9*4.2*10m | 11*5*11.5m |
OPTIONAL DEVICE | AUTO LOADER,CORONA TREATER, ROTARY DIE HEAD,AUTO WINDER,ETC |
|
We are plastic bag machines, Film machines, Printing machines suppliers/manufacturers from china factory . We also can produce Bag machines according to the client’s requirement. We are always try our best to become the good Supplier and manufacturer of RDL OPP Bag making machines, BH-FQ Plastic Bag Making Machines, Rolling Garbage Bag Making Machines,Laminated Film Stand Up zipper Pouch Making Machine, Film Blowing machines, Flexo Printing Machines . and welcome the customer from all over the world to contact with us.
Ruian Binhai Plastic Packing Machinery Co.,LTD
