Features :
1. Suitable for kinds PE laminated film ,Paper Laminated, Alu. Laminated,and co- extrude film
2. To produce three side seal bags, stand up pouch,zipper pouch,
3. EPC and double photocell tracking for unwinder
4. Unwinder with automatic tension control
Bags You can make on this type machine :
1.3 sides sealing bag
2. Centra sealing bag
3. Centra sealing and gusset
4. Sand up bag
5.Four Side Seal bags
6.zipper bags
7.Irregular Bags
Main Technical Parameters For Central Sealing Bag Making Machine
Model
| BHZD--600 | BHZD-500 |
Max.Diam eter of roll material | 600mm | 600mm |
Max.width of roll material | 1200mm | 1000mm |
bag size width | 70-600mm | 70-500mm |
bag size length | 70-380mm X N ( N≤6) | 70-380mm X N ( N≤6) |
bag-making speed | 30-150PCS/min | 30-150PCS/min |
Temperature control | Normal temperature to 3600C | Normal temperature to 3600C |
Total power | 35kw | 32kw |
gas resource | 0.6MPa(6kg/cm2 ) | 0.6MPa(6kg/cm2 ) |
Cooling water | 5L/min | 5L/min |
Machine weight | 6000kg | 5500kg |
outline diameter | L11505*W2400*H1865mm | L11505*W2300*H1865mm |
Optional:
Double layer unwinder device
Punching device for handle

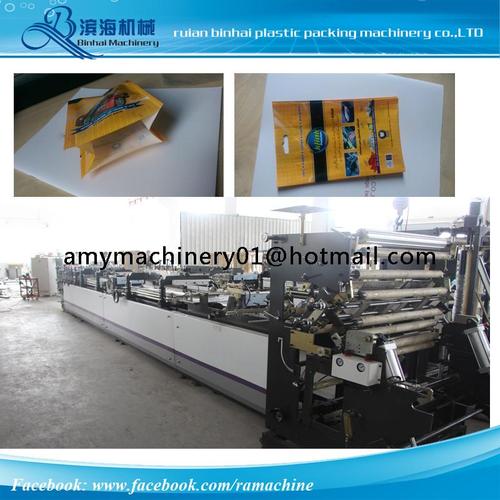

DETAIL IMAGES :
SAMPLE BAGS:
Question: Where is your factory located? How can I visit there?
Answer:Our factory is located in Ruian City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.If you take train from shanghai to ruian city , only 5 hours, the station is ruian station .
Question: How does your factory do regarding quality control?
Answer:Most our machine mechanical parts are processed by ourselves. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as ABB, Yaskawa, Siemens, Airtac, NSK, Delta, Panasonic etc. And all our machine will do running test before shipping.
Question: Do you company provided foreign country machine installation services?
Answer:We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.
Question: How your company provided after sales service?
Answer:All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.
We are plastic bag machines, Film machines, Printing machines suppliers/manufacturers from china factory . We also can produce Bag machines according to the client’s requirement. We are always try our best to become the good Supplier and manufacturer of RDL OPP Bag making machines, BH-FQ Plastic Bag Making Machines, Rolling Garbage Bag Making Machines . and welcome the customer from all over the world to contact with us.
FROM RUIAN BINHAI PLASTIC PACKING MACHINERY CO.,LTD
