Product Detail

Kraft Bubble/PE bubble Envelope machine/Thermal Bag Making Machine

Share to：

Consult

Prev： Double Lines Productions Of Stand Up Zipper Pouch Machine

Next： Laminated Film Stand Up Zipper Pouch Machine

Detail

Review(0)

DESCRIPTION :

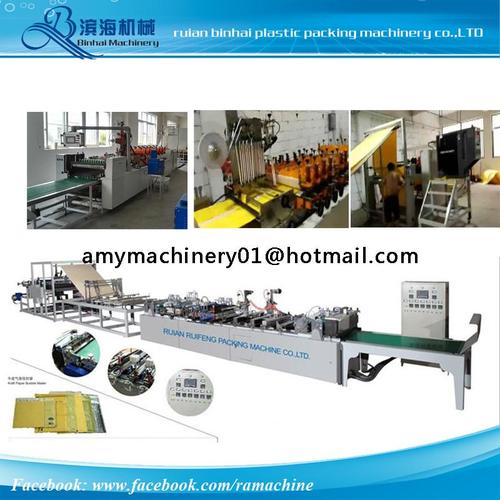

Kraft Bubble Envelope Bag Machine

This machine is special designed to make the bubble mailer from craft paper with bubble linings.

It combine two layers craft paper and two layers PE bubble film together by hot melt glue. Be sealed under the press of the vertical heat-seal bar and the horizontal heat-seal bar, then be cooled under cooling bar, at last be cut at the fixed length to be the finished mail bag.

This machine adopts the advanced PLC control system, servo motor fix length, touch screen control, easy to operate, stable performance, the mailer be made with smooth and good seal, it is your ideal choice.

FEATURE:

The machine has such features as: computer controlled, imported servo motor for traction the material, unwinding the material in permanent tension, photoelectrical correct the error, when the sign is loose or there is no material the machine will stop automatically, etc.

TECHNICAL PARAMETER

Suitable material	kraft paper 80-110g/sqm (coated)+PE bubble film
Max design speed	80pcs/min(can make two at one time for small size)
Max bag length	700-800 mm for one bag make 400 mm for two bag one time
Max bag width	600 mm
Max reel width	1800mm.
Max reel diameter:	Kraft paper ￠1200mm, PE bubble ￠1200mm
Power supply	3-phase 4-lines AC 380V 50HZ 25KW
Weight	3800KG
Overall dimension(LWH)	1640017502300mm

DETAIL IMAGES:

SAMPLE BAGS :

thermal bag machine1.jpg

Video Link

After Service :

Question: Are you Manufacture or Trading Company?
Answer:We are printing machines, bag machine, film machines manufacturer nearly 10years, we had established our own trading company to expand our foreign market business, and provided our customer better service

Question: Where is your factory located? How can I visit there?
Answer:Our factory is located in Ruian City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.If you take train from shanghai to ruian city , only 5 hours, the station is ruian station .

Question: How does your factory do regarding quality control?
Answer:Most our machine mechanical parts are processed by ourselves. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as ABB, Yaskawa, Siemens, Airtac, NSK, Delta, Panasonic etc. And all our machine will do running test before shipping.

Question: Do you company provided foreign country machine installation services?
Answer:We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.

Question: How your company provided after sales service?
Answer:All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.
