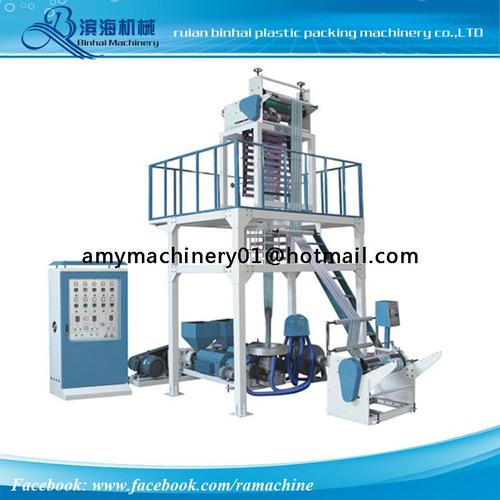

SJ-H-T45/50 Two color film blowing machine
TECHNICAL PARAMETER
Model | SJ-H-45 | SJ-H-50 |
Suitable Material | HDPE |
Film Width(mm) | 200-600 | 300-800 |
Film Thickness(mm) | 0.008-0.06 | 0.008-0.06 |
Max.Extrusion Output(kg/hr) | 45kg/hr | 55kg/hr |
EXTRUDER |
Screw Diameter(mm) | Φ45+Φ45 | Φ55+Φ55 |
Screw L/D Ratio | 28:1 | 28:1 |
Screw Material | 38 CRMOALA |
Cylinder Material | 38 CRMOALA |
Cylinder Cooling | 180w | 180w |
Driving Motor(kw) | 7.5x2kw | 11x2kw |
Temperature Control | 3+3 | 3+3 |
Average Power-consume(kw) | 20 | 28 |
TYPE OF DIE |
Die Size(mm) | Φ70 | Φ90 |
Temperature Control | 2 | 2 |
Air Ring | 1 | 1 |
Air Blower(kw) | 2.2 | 2.2 |
Center Steady Stick | 1 | 1 |
TAKE-UP UNIT |
Roller width | Φ165x650 | Φ165x850 |
Height adjustable type | 700mm | 700mm |
Take-up Speed(m/min) | 10-100 | 10-100 |
Take-up Motor(kw) | 0.75 | 1.5 |
WINDING UNIT |
Type | SURFACE FRICTION TYPE |
Winding Motor(kw) | 6N.m | 6N.m |
Winding Speed(m/min) | 100 | 100 |
Overall Diemension(LxWxH) | 5.0x2.0x4.1m | 5.5x2.0x4.1m |
We are plastic bag machines, Film machines, Printing machines suppliers/manufacturers from china factory . We also can produce Bag machines according to the client’s requirement. We are always try our best to become the good Supplier and manufacturer of RDL OPP Bag making machines, BH-FQ Plastic Bag Making Machines, Rolling Garbage Bag Making Machines,Laminated Film Stand Up zipper Pouch Making Machine, Film Blowing machines, Flexo Printing Machines . and welcome the customer from all over the world to contact with us.
Ruian Binhai Plastic Packing Machinery Co.,LTD
