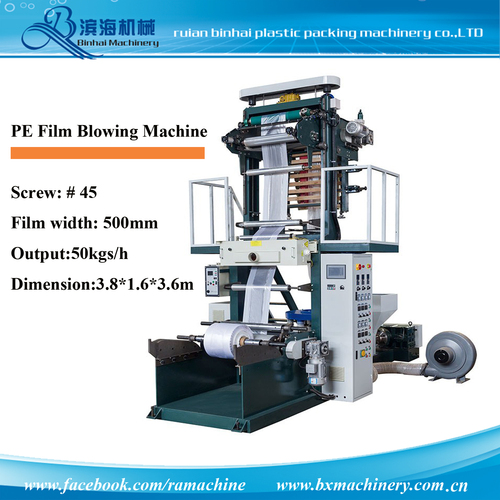

FEATURE

MODEL

HD45×600

Suitable material

HDPE/LDPE

Layer number

1

Film thickness

0.006-0.05m

Max output

50KG/H

Max film width

500MM

EXTRUDER

Screw diameter

Ø45MM

Screw L/D

30:1

Screw material

38CrMoALA+PTA ALLOY

Barrel material

38CrMoALA+PTA ALLOY

Barrel cooling

180W×2

Main motor

15KW

Heating power

10KW

Die diameter

HDØ50MM

Heating zone

2

Air blower

3.7KW

TAKE UP UNIT

Take up type

UP and DOWN

Up roller width

600MM

Up motor

1.1KW

Take up speed

10-100M/MIN

WINDER

Winding roller width

600MM

Winder type

Single Friction Winder

Winding motor

1.1KW

Max winding diameter

800MM

DIMENSIONS

L×W×H

3.8×1.6×3.6M

OPTIONAL DEVICE

AUTO LOADER,CORONA TREATER,

ROTARY DIE HEAD,AUTO WINDER,ETC
