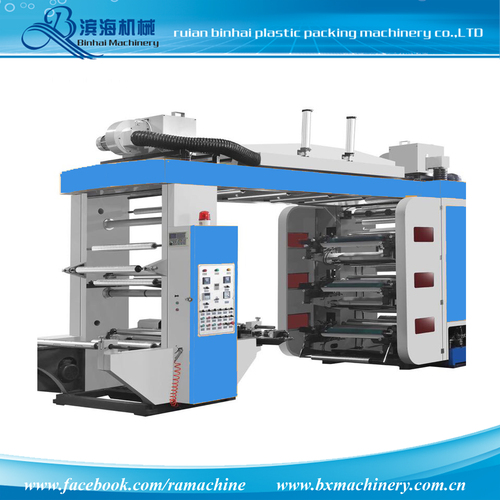

6 Colors Flexo Printing Machine
1.The machine is suitable for printing: roller paper, packingpaper, cellophane, fiber glass web, tubular films, PP woven sackand PP/LOPE/LLDPE/HDPE/BOPP poly bags.
2.Require small space, easy operation and maintenance; man powerand cost saving.
3.Used with either solvent or water base flexo-printing ink only.
4.The photo polymer plate or rubber plate with2.28mm in thickness is a first priority, other size is available byrequest.
5.The printing plate cylinder is controlled byhydraulicystem; easy operation and high accuracy, there will be no defectwhile starting or stopping the machine on the color fixing.
6.Have a counter device to control production Q'TY, which isreached the presetting numerical then the machine will be stopworking at the same time.
7.When printing roller stop working, the rubber roller and aniloxroller will be continuous running to avoid drying of printing inkon such rollers.
8.The hot air fan and blower with respective heaters are mounted onthe machine. For ink drying to increase production speed.
9.The heater and fan will take off automatically when the blowerstop working. Let this machine keep in safety position.
Main Technical Parameter:
|Max. Material width||650mm||850mm||1050mm||1250mm||1450mm||1650mm|
|Max. Printing width||560mm||760mm||960mm||1160mm||1360mm||1560mm|
|Printing cylinder way||Hydraulic control up and down|
|Printing speed||30-90m/min, with Chamber doctor , Speed Upto 110m/min|
|Anilox roller||Metal:100-300LPI / Ceramic: 200-800LPI|
|Register precision||Longitudinal:±0.25mm; crosswise:±0.25mm|
|Dry system||Electric heating|
Machine Also can made as client requirement.
Optional Spare part:
1. ceramic anilox roller ( japan murata)
2. printing cylinder
3. enclosed chamber doctor blade : improve machine speed to120m/min
4. monitor inspect device
5. corona treatment ( china and taiwan brand)
6. seal rubber for chamber
7. plate mounting machine
8. anilox roller cleaning machine
9. plate making machine
DETAIL IMAGES :
AFTER SALES SERVICE :
Question: Where is your factory located? How can I visit there?
Answer:Our factory is located in Ruian City, Zhejiang province, China. The nearest air port is Wenzhou airport, we can go Wenzhou airport pick you.If you take train from shanghai to ruian city , only 5 hours, the station is ruian station .
Question: How does your factory do regarding quality control?
Answer:Most our machine mechanical parts are processed by ourselves. So we can better control our quality from beginning. Electrical Part we had cooperated with good foreign brand, such as ABB, Yaskawa, Siemens, Airtac, NSK, Delta, Panasonic etc. And all our machine will do running test before shipping.
Question: Do you company provided foreign country machine installation services?
Answer:We have strong service team can provided all the machines buy from our company foreign country installation service and engineer training service. But buyer need provided the ticket, food, hotel cost etc.
Question: How your company provided after sales service?
Answer:All the machines buy from our company guarantee is one year (except any human mistake occurred) each machines we will give some spare parts free when shipping machines. Within guarantee machine parts damage, we will send to you free by express asap. If customer required engineer go to solve problem is possible.
