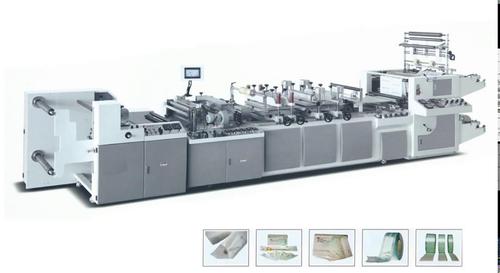

Youtube link for medical paper pouch machine :
https://youtu.be/VE-Ciiopev8
Features
1) Double unwinding and rewinding system;
2) Hydraulic meter displays pressure;
3) Auto web-guide works together with magnetic tension controlling system;
4) Photocell tracks print marks.
5) Servo motor/stepping motors are applied for controlling bag making length and speed;
6) Invertor is employed for better bag making;
7) Auto hole puncher;
8) Bags can be sealed one or two times according to different production requirement;
9) Bag forming results good precision and high speed;
10) It adopts heavy pressing bag forming method, the pressure is pressed equally on four points.
11) It is ideal equipment for making paper/paper, paper/plastic film medical bags;
Main Technical Parameters
Model | BHLD-600 |
Max. Dia. of unwinder | ф600mm |
Max sealing width | 600mm |
Max cutting length | 600mm |
Production raw | 1~3raws |
Suitable Material | Medical grade paper/CPP+PET compound film |
Speed of reel making | 10-30metes/min |
Speed of pouch making | 30~100cuts/min |
Total power | 20KW |
Weight | 3100KG |
Overall dimension(L*W*H) | 6600*1200*1600mm |
Ruian Binhai Plastic Packing Machiner Co.,LTD
